Re: K3 Receiver Noise Level -- Evaluation andAdjustment

Posted by Sverre Holm (LA3ZA) on Dec 20, 2009; 6:14pm
URL: http://elecraft.85.s1.nabble.com/K3-Receiver-Noise-Level-Evaluation-and-Adjustment-tp4187070p4195440.html

It appears that there are several sources for lines in the spectrum of the output on the LINE OUT jack.
What I measured earlier today was at a LINE level of 015, at some value above that one can see that indeed the harmonics of the signal spectrum starts to appear -maybe due to some transformer effects as mentioned on the list, but at my settings and at this line out level this is not the case. Besides, I can measure something similar from the headphone output jack.

My original measurement with signal + unrelated line noise is here:

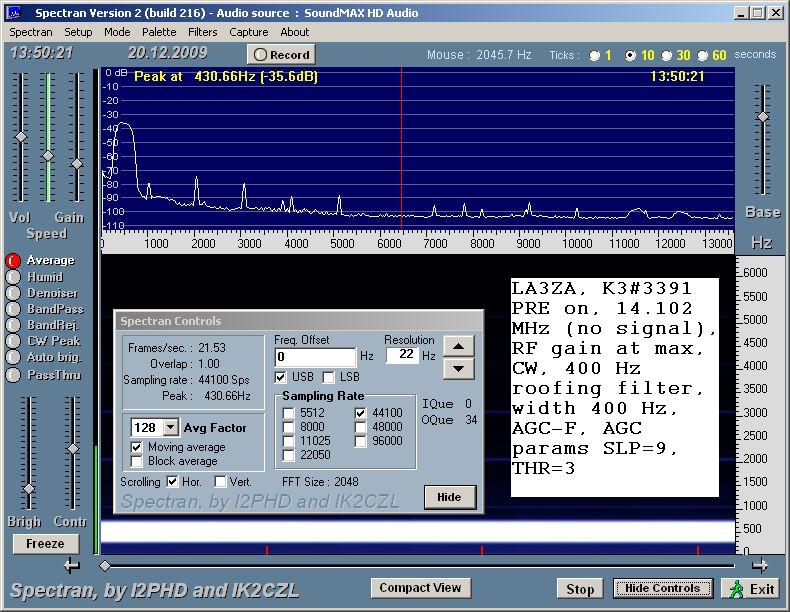

http://www.qslnet.de/member/la3za/bilder/K3-CW-spectran.jpg

Then I measured with the RF gain set to minimum, i.e. not signal:

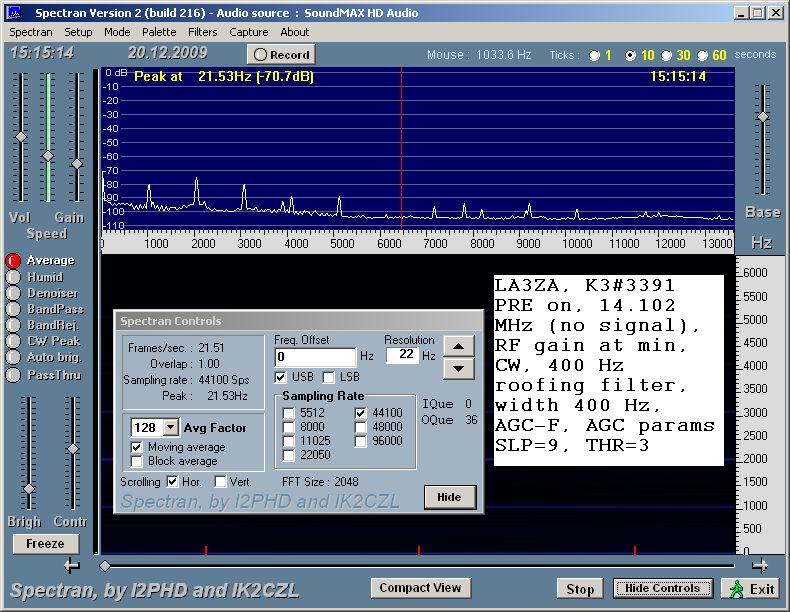

http://www.qslnet.de/member/la3za/bilder/K3-no-spectran.jpg

But, I cannot say for sure that the K3 is the source of the line noise (1,2,3, ... kHz) as it appears even if I unplug the minijack cable (even with the K3 turned off), however at about 15 dB lower level:

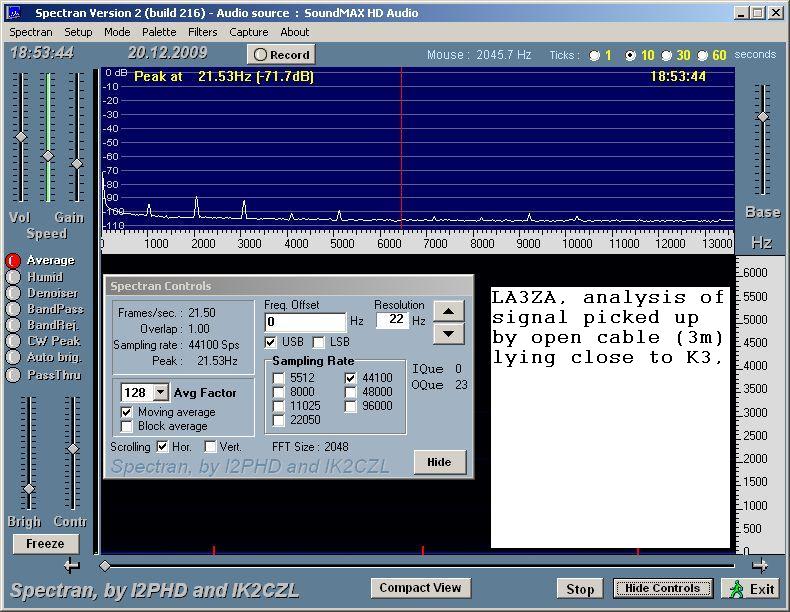

http://www.qslnet.de/member/la3za/bilder/K3-noConnect-spectran.jpg

The only way to get rid of the lines is to unplug the cable at the PC-end:

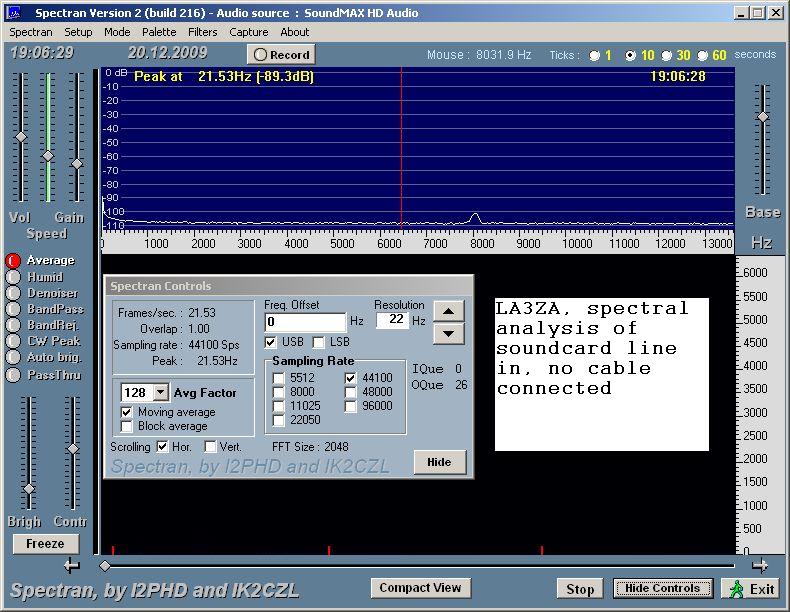

http://www.qslnet.de/member/la3za/bilder/K3-noCable-spectran.jpg

So, for sure I cannot blame these lines on the K3 now, I need to understand better their source before making any conclusions. Sorry if I have made confusion on the list with these measurements.
Sverre, LA3ZA

K2 #2198, K3 #3391,
LA3ZA Blog: http://la3za.blogspot.com,
LA3ZA Unofficial Guide to K2 modifications: http://la3za.blogspot.com/p/la3za-unofficial-guide-to-elecraft-k2.html
